Apolo Online Ozone Concentration Analyzer

1.Product description

Apolo Online Ozone Concentration Analyzer APOLO-200,the key parts are supplied by USA APOLO,it can monitoring ozone concentration and ozone output capicity on line connect with ozone generator outlet,the measure range is 0-200mg/L.

Apolo-200 calculates the current ozone concentration online analyzer based on Lambert-Beer law by measuring the light signal intensity changes before and after ozone absorption to ultraviolet light.

With advanced double light path uv light source system, it can make the uv lamp quickly achieve measurement condition after booting, adopt the separate pools of light technology, has no leakage, high pressure, large flow gas shock resistance, with fully consider the user easy maintenance, easy operation and low cost design.

Application fields: widely used in ozone generator manufacturers, sewage treatment, chemical, waste gas, pharmaceutical, municipal and other ozone generator fields.

Principle introduction:

Measurement principle: according to lambert-beer law, it can accurately measure ultraviolet signal before and after photometric absorption.

Test method: double optical ultraviolet absorption method, high precision;

Light source system: American long life ultraviolet lamp tube (wavelength: 253.7nm);

Optical pool system: separate us optical pool technology, no leakage, high pressure, large flow sampling gas impact;

Intelligent compensation: automatic compensation function of built-in light source;

Automatic zeroing: the device automatically zeroing once every 1.5 hours to ensure the stability of zeros and the accuracy of detection concentration.

Data display: LCD backlight display, Data shows clearly

Standard configuration: Antiseptic flowmeter

2.Technical parameters and installation

Range

Sampling

Application fields

   0-300g/Nm3

   Positive pressure sampling, with pressure and       temperature compensation

   The concentration of ozone generator outlet real-time detection

   0-100g/Nm3

   Positive pressure sampling, with pressure and       temperature compensation

   The concentration of ozone generator outlet real-time detection

   0-50g/Nm3

   Positive pressure sampling, with pressure and       temperature compensation

   Ozone generator exports or exhaust gas ozone concentration detection.

   0-1000ppm

   Positive pressure sampling, with pressure and       temperature compensation

   The casing ozone concentration real-time detection.

   0-100ppm

   Positive pressure sampling, with pressure and       temperature compensation

   Ozone concentration in space or room real-time detection.


           Range

   0-200g/m3

          Input gas flow rate

  1.2L±0.2L/min

          Zero frift

  <0.5%

          Sampling outlet size

  Φ66mm*4mm

          Output model

  差分4-20mA,线性

          Resolution

  0.01g/m3

          Input pressure

  <0.1Mpa

          Response time

  <1.5S

          Communication type

  RS-485

          Power

  AC 220V

         Weight

  4kg

         Dimension

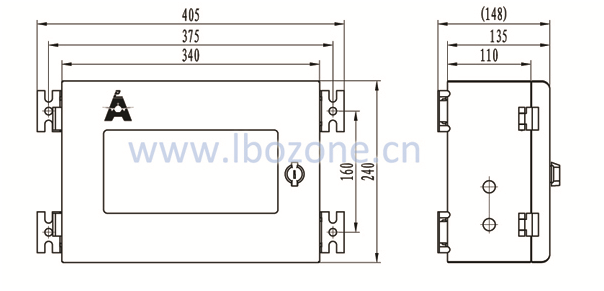

  340*240*135mm

         Checking cycle

  24个月

3.Advantages

APOLO - 200 ozone concentration analyzer with high precision, faster response speed, long life and uv light source (253.7 nm) advantages, the built-in light source intelligent automatic compensation function, wide test range of 0-245 - g/m3, wide voltage design (100 ~ 240 vac), LED backlight display, clear reading;Output 4-20ma current signal output and RS485 communication, equipped with dry, dust removal devices.




                                                                                                   流量:0.5L±0.2L/min   压力:<0.1Mpa (注:说明书和仪表的标识有差异,以说明书文档为准

三芯110-220V电源连接头 定义(已配备防水连接器,注意L和N的连接):

(1)棕线:L   (2)黑或黄线:接地   (3)蓝线:N

四芯航空插头信号连接器 定义:(1)棕线:RS-485+       (2)蓝线:RS-485-         (3)黄线:4-20mA+      (4)灰线:4-20mA-

五、连接工艺及流程


APOLO3-200型壁挂式臭氧在线检测仪-正压取样连接工艺
